TALON DT-150

The TALON DT-150 is a very compact Group 2 unmanned aerial system (UAS) developed as a smaller counterpart to the TALON DT-300. Designed for versatility and portability, the DT-150 serves various applications, including reconnaissance, surveillance, and target acquisition as well as the ability to deliver useful logistics or three air launch drones.

DOWNLOAD DT-150

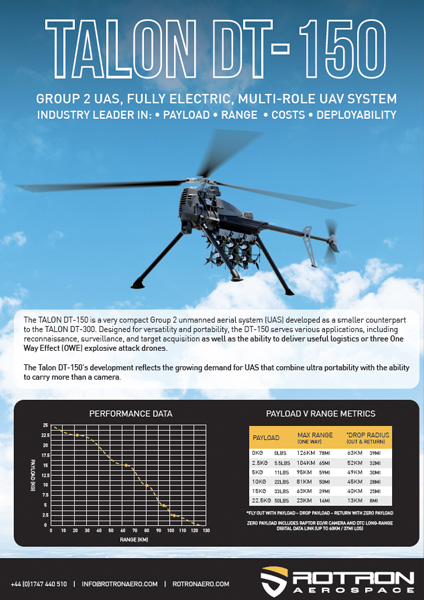

INFORMATION SHEET

FEATURES

Explore the interactive hotspots below to learn more about the DT-150.

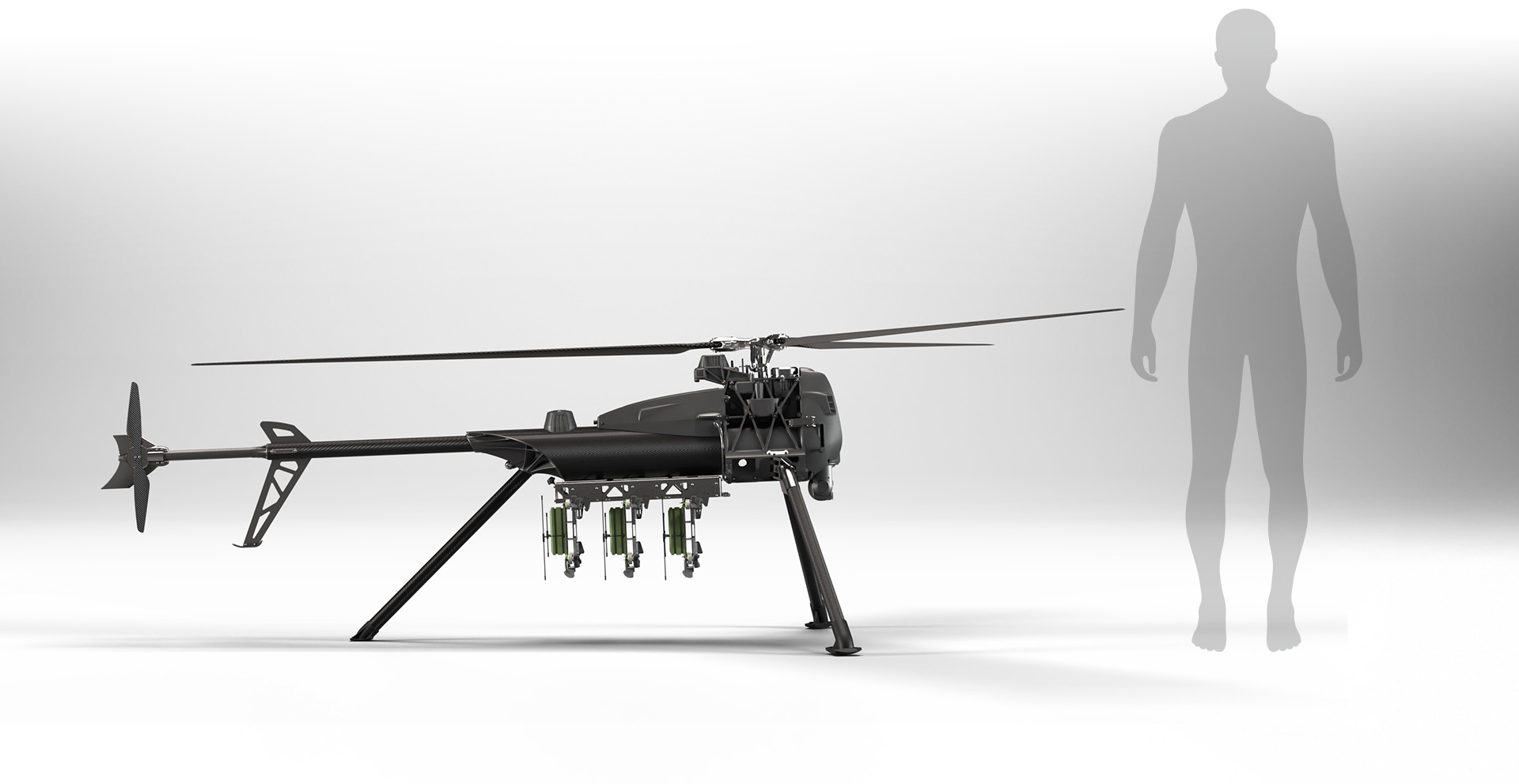

DT-150 Features

Rotor Head

Propulsion

Raptor Camera

Tail Fin

Rear Propeller

Rapid deployment

Discover how the Talon DT‑150 is prepared for deployment in this step-by-step animation. Watch how the Group 2 UAV is efficiently boxed for transport, then unpacked and assembled on-site – ready for rapid operational use.

Longest range electric VTOL payload system in its class

ROTOR SIZE:

1 x 3.5M (11.5FT)

ENDURANCE:

54MINS (5KG PAYLOAD)

MTOW:

50KG (WITH 22.5KG PAYLOAD)

CRUISE SPEED:

80 KM/H (50 MPH)

BOXED DIMENSIONS

L:117cm W:53CM H:27CM

MAX DROP RADIUS:

40KM (WITH 15KG PAYLOAD)

MAX ALTITUDE:

2250M (7,400FT)

MAX RANGE: 126KM

15KG PAYLOAD: 63KM

DT-150 PERFORMANCE DATA

Payload 'v' Range Metrics

PAYLOADMAX RANGE
(one way)		*DROP RADIUS
(out & return)
0 KG126 KM63 KM
2.5 KG104 KM52 KM
5 KG95 KM49 KM
10 KG81 KM45 KM
15 KG63 KM40 KM
22.5 KG23 KM13 KM
  • *Drop Radius = Fly out with Payload – Drop Payload – Return with zero Payload
  • Zero payload includes Raptor EO/IR camera and DTC long-range digital data link (up to 60km LOS)

DT-150 Mothership

The DT-150’s impressive capability to carry up to 22.5kg payload is further enhanced by its modular carrier rack, designed specifically to accommodate aerial launch drones. This innovative feature allows operators to deploy drones directly from the DT-150, extending its operational range and versatility. By integrating aerial launch drones, the DT-150 becomes an invaluable tool for missions such as surveillance, enabling it to cover expansive areas with precision and efficiency. This modular approach not only maximizes the DT-150’s payload utility but also offers unparalleled flexibility for diverse mission profiles.

DT-150 with FPVs

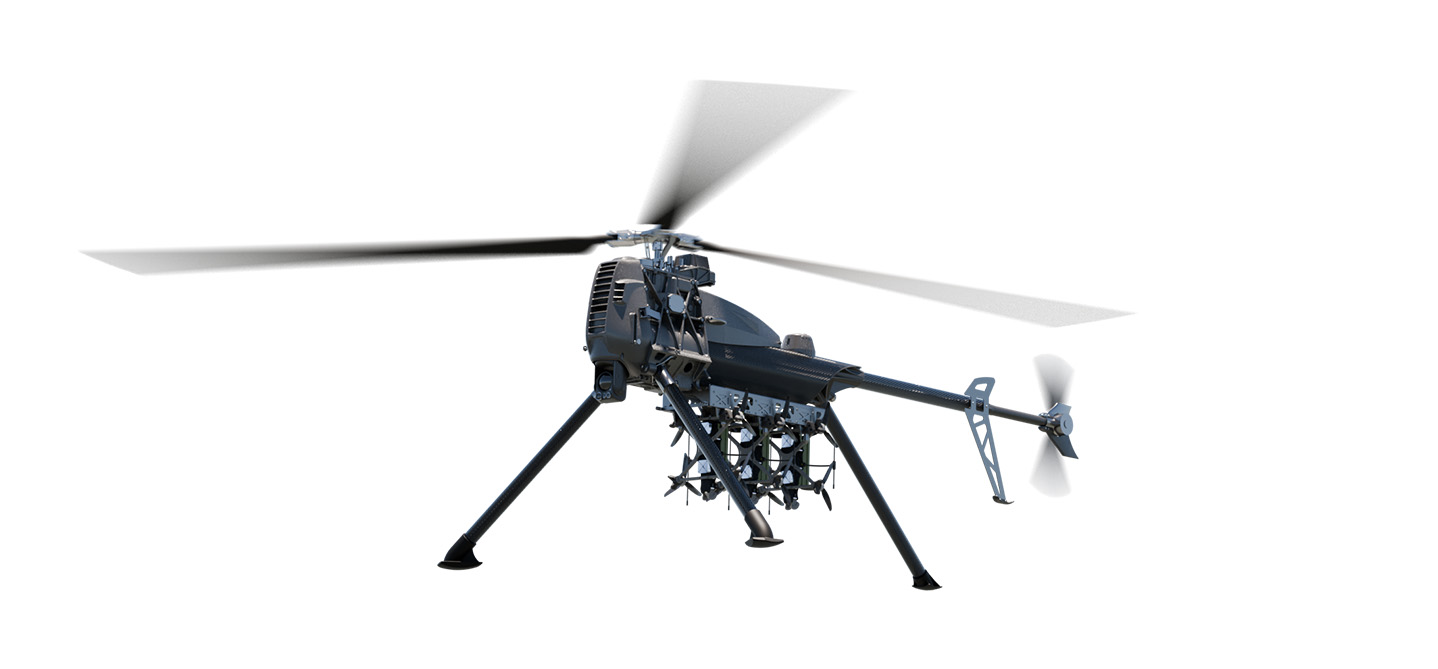

DT-150 Multi-Use Payload Rig

The Multi-Role Payload Mount and Drop Rig System (6-servo) is a highly versatile payload deployment platform designed specifically for integration with the DT-150 fuselage. Equipped with 6 independent, remotely-controlled servo connection points, the system offers exceptional flexibility in mission configuration and payload type.

Fuselage Integration:

Fuselage connection

Rigidly fastened to the DT-150 fuselage, the mount maintains stability during flight while minimizing structural stress during payload release.

Precision
Control:

Servo

Each of the 6 connection points is servo-actuated and remotely managed, enabling precise, selective payload release and dynamic mission adaptability.

Modular Configuration:

Modular

The system supports a wide range of deployment options, including:

  • 6 x Wren-5 drones
    (0.8kg payload each)
  • 3 x Swift-7 drones
    (1.5kg payload each)

Logistics & Resupply:

Bags

In addition to drone deployment, the system can carry one large supply bag (15kg), supporting total payloads up to 22.5kg for tactical resupply or humanitarian drops.

VERSATILE PAYLOAD RIG

Aerial launch DRONES

Rotron’s high-performance aerial launch drones are engineered for seamless integration with the Talon DT-150 Mothership, supporting extended-range missions, distributed surveillance, and precision payload delivery between 0.8 kg and 1.5 kg. Each FPV drone can operate up to 25 km from the mothership at speeds reaching 120 km/h.

The Talon DT-150 is equipped with a digital radio rebroadcast system that forms a resilient mesh network, ensuring robust, long-range communication with all deployed drones. Its modular drop-rig accommodates up to six Wren-5 FPV drones, each featuring a dual-redundant release mechanism managed by the mothership’s autopilot system.

All Rotron FPV drones are manufactured in the UK using NDAA-compliant components, ensuring full supply chain integrity.

Together, the Talon DT-150 and Rotron’s FPV drone platform provide a powerful operational edge – extending communications, improving reliability, and acting as a force multiplier across a wide range of mission profiles.

Wren-5 drone

Wren-5

The WREN-5 is a compact, high-agility FPV drone built for rapid, precise missions. Featuring four 5-inch propellers, it thrives in tight or dynamic environments—ideal for scouting, surveillance, or light payload delivery.

Designed to complement larger systems like the SWIFT-7, the WREN-5 brings speed and flexibility to multi-drone operations. The DT-150 Mothership can deploy up to six WREN-5 drones, each carrying a 0.5 kg payload, enabling adaptable, high-efficiency deployments across a range of tactical or support scenarios.

Swift-7

SWIFT-7

The SWIFT-7 is a high-performance FPV drone built for precision and adaptability. Equipped with four 7-inch diameter propellers, it is engineered to integrate seamlessly with a variety of payloads, ensuring accurate and reliable deliveries.

Whether tasked with surveillance or transporting lifesaving supplies, the SWIFT-7 offers a perfect balance of agility and stability in flight. The DT-150 Mothership can deploy up to three SWIFT-7 drones, each carrying a 1.5 kg payload, for a combined total payload capacity (including drones) of 15 kg.

Download FPV Information sheet

Download the FPV brochure. Need more information?

FPV Dones Information Sheet
Download FPV Drones Informantion Sheet

portability

The Talon DT-150 features an innovative, tool free design, meticulously engineered to reduce weight and complexity while maximizing aerodynamic efficiency. Its rapid pack-down capability creates a compact form factor, enabling easy transport without the need for special vehicles. The lightweight flight case (33.5 KG) can easily be carried and loaded by a single person into an ordinary estate car, making deployment fast and practical. Whether launching from urban environments, challenging terrains, or even at sea, the DT-150’s versatility ensures reliable operation in virtually any setting.

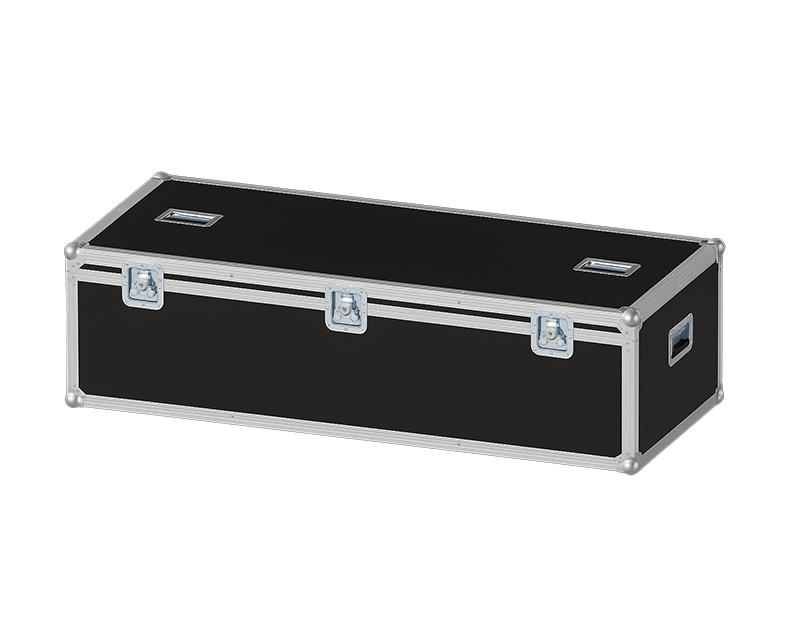

DT-150 Unpack Step 1

EASILY STORED & TRANSPORTED

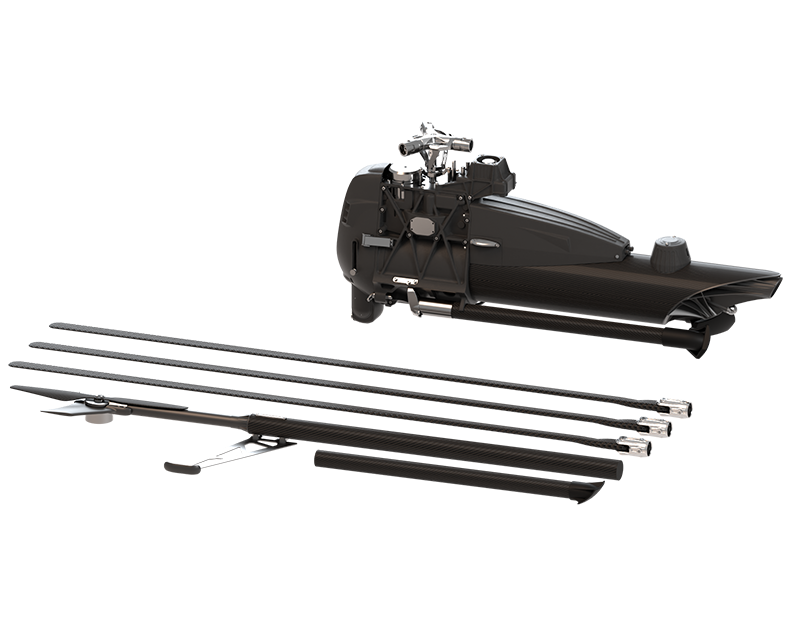

DT-150 Unpack Step 2

DT-150 REMOVED FROM BOX

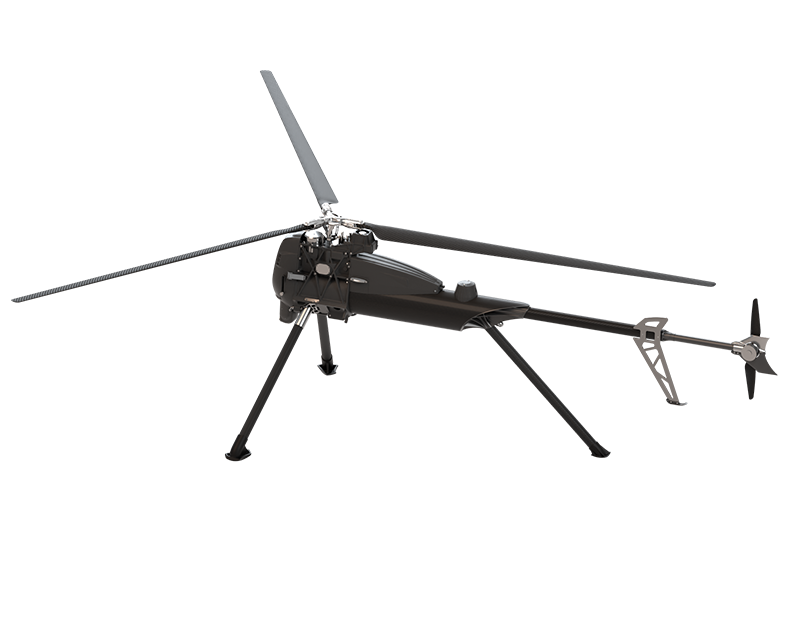

DT-150 Unpack Step 3

LEGS UNFOLDED, ROTOR BLADES CONNECTED

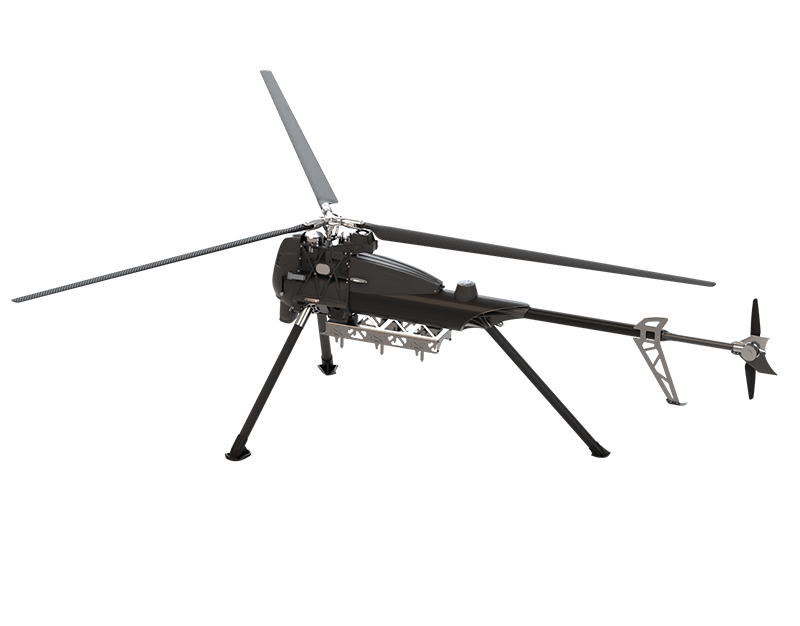

DT-150 Unpack Step 4

ASSEMBLED WITH PAYLOAD RIG

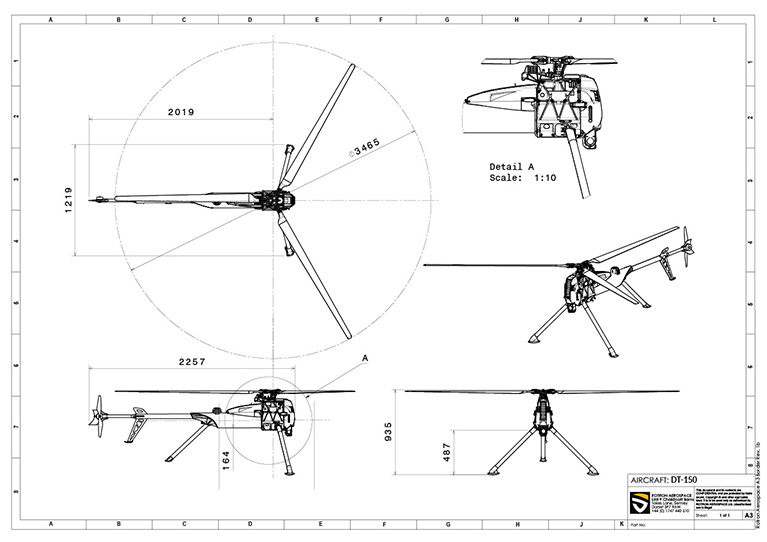

DT-150 CAD

Click image to download

technical specifications

AIRCRAFT DIMENSIONS:3.9m long x 1.2m wide (12.7ft x 3.9ft) (inc. deployed landing gear)
ROTOR DIAMETER:3.5m (11ft) x 1 rotors
AIRCRAFT MASS:22.5kg (50bs) (inc. battery, Raptor EO/IR camera and DTC digital radio data link)
MAX PAYLOAD:27.5KG (60lbs)
MAXIMUM TAKE-OFF MASS:50KG (110lbs)
MAXIMUM SPEED:120km/h (75mph)
MAXIMUM RANGE:126km (inc. Raptor EO/IR camera and DTC digital radio data link)
OPTIMAL CRUISE SPEED:80km/h (50mph)
MAXIMUM ALTITUDE:2250m (7,400ft)
TOTAL LENGTH: (inc rotors)2.8m x 3.5m (22.9ft x 11.5ft)
PROPULSION SYSTEM:1 x Rotron 10kw Brushless Motor
BATTERY SYSTEM:1 x 64Ah (48v) Lithium Ion

flight case SPECIFICATIONS

CASE LENGTH:117CM
CASE WIDTH:53CM
CASE HEIGHT:27CM
CASE WEIGHT11KG
Flight Case Technical Drawing

Click image to download

Download DT-150 Information sheet

Download the full DT-150 brochure for comprehensive specifications, system schematics, and operational guidelines.

Need more information?

DT-150 Information Sheet
Download DT-150 Informantion Sheet

GET IN TOUCH

Rotron Aerospace Logo

9 Chaldicott Barns, Tokes Lane, Semley, Dorset SP7 9AW UK
Registered in England No. 07120913
T: +44 1747 440 510
E: info@rotronaero.com

Linkedin Instagram Youtube
Made In Britain Logo
ISO 9001 Certification
Cyber Essentials
Make UK Logo
Rotron Aerospace Ltd. All Rights Reserved.
feature-rotor-head2

DT-150

UNIQUE ROTOR HEAD

Rotron’s proprietary three-bladed rotor head system enables cyclic and collective pitch control, providing electro-mechanical stabilization and efficient lift. With ~30% fewer moving parts than conventional rotorheads and a driverless swashplate, it offers simplicity, energy efficiency, and reduced costs. Designed and tested in-house, it showcases Rotron’s expertise in metallurgy and aerodynamics.

In contrast, multi-rotors rely on rigid rotors and variable speeds, leading to higher energy use and limiting blade size due to inertia.

DT-150

EFFICIENT PROPULSION SYSTEM

A proprietary, liquid cooled electric propulsion system, accessible when the camera is deployed.

Batteries (lithium-ion), battery management system and motors are to Rotron specification, integrated by Rotron utilising a trusted, UK-based supply chain. Outstanding thermal management ensures operational efficiency. Batteries may be switched out or recharged.

DT-150

CAMERA

The TALON DT-150 features the NextVision Raptor – a lightweight, long-range dual EO-IR stabilized turret. With extended IR range and X80 EO zoom, it delivers outstanding imaging for target detection, identification, and tracking.

This integration enhances the DT-150’s performance in ISTAR, reconnaissance, and surveillance missions, making it a highly capable asset in demanding environments.

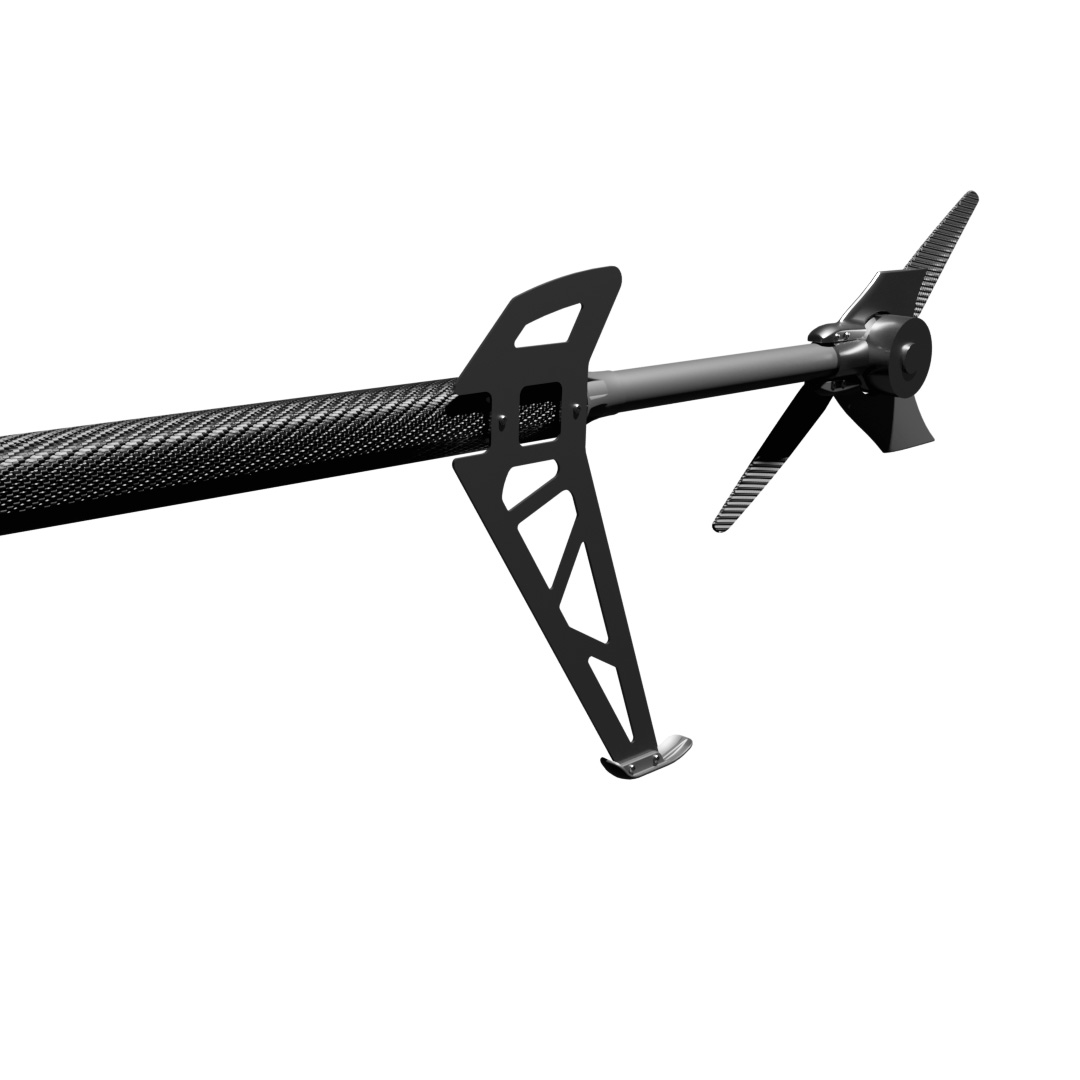

DT-150 Tail Fin

DT-150

TAIL FIN

The tail fin is a lightweight, aerodynamically refined stabiliser designed to enhance yaw stability, protect the tail rotor and improve overall flight performance. Its optimised structure reduces weight while maintaining strength and efficiency, supporting the Talon DT‑150’s precise and reliable operation across a range of flight conditions.

DT-150

REAR PROPELLER

The Talon DT‑150’s rear tail rotor features a lightweight two-blade design, optimized for precise yaw control, enhanced stability, and reduced noise. It effectively counteracts the torque produced by the main rotor, ensuring accurate heading adjustments during both hover and forward flight.
