Engines

RT600-XE

The RT600-XE twin-rotor rotary engine delivers exceptional power density in a compact, lightweight package. Liquid-cooled and fuel-injected, it provides reliable high performance for demanding aerospace and UAV platforms.

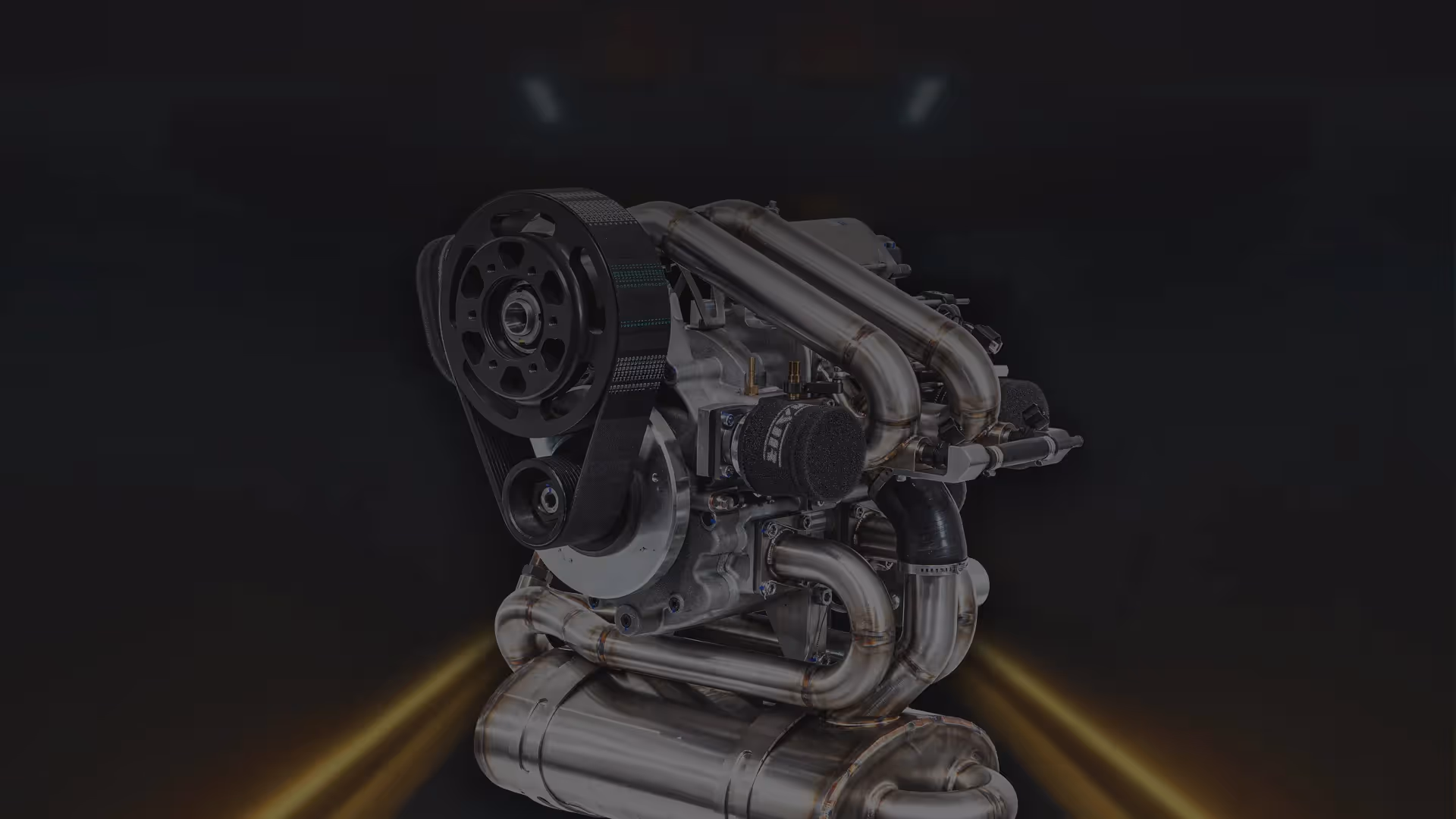

Rotron RT600-XE Rotary EngineRotron RT600-XE Rotary Engine
Key Features

Reliable power. Exceptional efficiency.

Max Peak Power
100HP
Max Peak RPM
7500RPM
Max Continuous
70HP
Engine Weight
44.5KG
(98.1LBS)
Engine Type
Twin Rotor
Rotary Engine
Displacement
600cc
Fuel Type
Unleaded 95 Octane
Fuel Consumption
0.56 LBS
/ Per HP / Per Hour
OVERVIEW

With up to 100 hp peak and 70 hp continuous output, the RT600-XE streamlines integration through flexible drive options and compact architecture, enabling versatile installation across advanced airframe designs.

Explore the interactive hotspots below to learn more about the
RT600-XE
.
Rotron RT600-XE Rotary Engine
No items found.
Technology

The RT600-XE’s advanced twin-rotor Wankel architecture minimises reciprocating mass and vibration, delivering smooth, linear power. Its liquid-cooling system maintains thermal stability under sustained load, resulting in exceptional power-to-weight performance, long service life and mission-ready endurance.

Rotron RT600-XE Twin Rotor Wankel Engine
rotron icon

High Power Density: Twin-rotor rotary architecture produces outstanding power-to-weight performance with minimal reciprocating mass and extremely smooth output.

rotron icon

Advanced Thermal Control: Liquid-cooling system maintains stable temperatures during high-load operation, ensuring durability and sustained performance reliability.

rotron icon

Flexible Drive Integration: Flange, direct and reduction drive options enable seamless compatibility with diverse propeller, rotor and airframe systems.

Range

Fan-drive system range.

No items found.
No items found.
Swipe
in use & partnership with
No items found.
Features

High-Density Twin-Rotor Propulsion Engine for UAV, Aerospace and VTOL Platforms

rotron yellow icon
Twin-rotor Wankel architecture
rotron yellow icon
Class-leading performance
rotron yellow icon
Endurance-focused durability & reliability
Twin-rotor Wankel architecture

The RT600-XE utilises a twin-rotor rotary design to deliver higher output with exceptional smoothness and inherent balance. By distributing load across two rotors, the engine produces stronger, more consistent torque while improving thermal efficiency and operational stability. This compact rotary configuration, with far fewer moving parts than comparable reciprocating engines, enables lighter airframe integration, extended range and reduced maintenance without sacrificing power.

Rotron RT600-EX Twin-Rotor Wankel Engine
Class-leading performance

Designed to maximise power within a compact footprint, the RT600-XE offers an outstanding power-to-weight ratio in its class. Its lightweight rotary architecture frees up valuable mass and space within the airframe, allowing designers to increase payload, extend endurance or improve overall system efficiency. The result is greater performance flexibility without the penalties of size or weight typically associated with high-output engines.

Rotron Rt600-XE - Class-leading power-to-weight performance
Endurance-focused durability & reliability

The RT600-XE is engineered for sustained operation in demanding environments, combining low vibration characteristics with reduced internal wear. This inherently smooth rotary design enhances component longevity and supports long service intervals, with a quoted time between overhauls of up to 1,000 hours. For high-mission-count and endurance-critical applications, it delivers dependable performance, lower lifecycle costs and greater operational confidence.

Rotron RT600-XE Durability & Reliability

Additional Details

No items found.
No items found.
Specifications

Full specifications

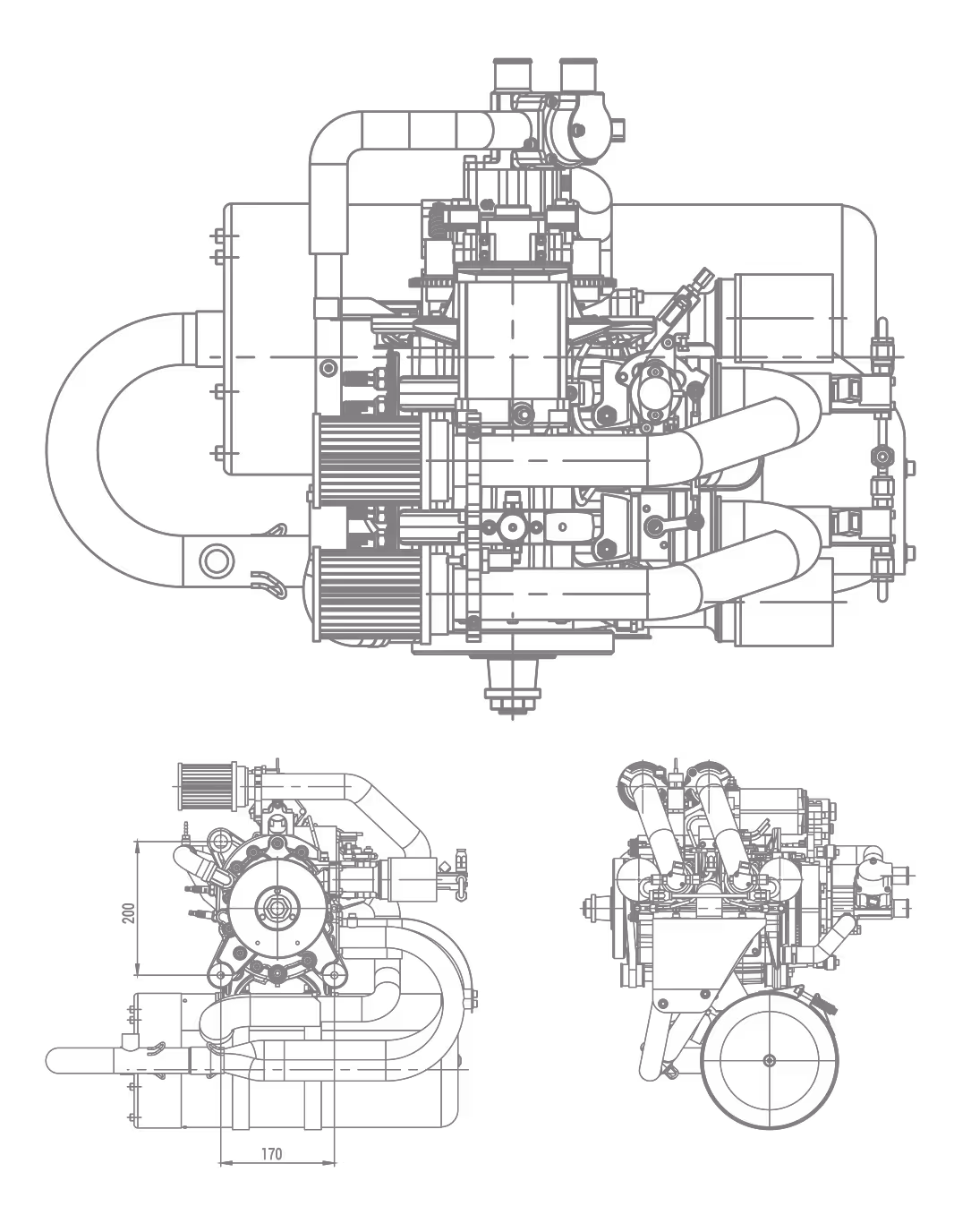

Rotron RT600-XE Engine Dimensions
Technical Specifications
Engine Type
Twin [2] Rotor, Rotary
Displacement
600cc
Application
Aviation High Output
Max. Peak
100HP
Max. Peak RPM
7500RPM
Max. Continuous
70HP
TBO
1000hrs (subject to flight profile)
System Weight
44.5 KG / 98.1 LBS
Drive Type
Flange, Direct or Reduction (2.5:1 or 2.2:1)
Drive Rotation
Counter-Clockwise
Fuel System
Fuel Injection
Fuel Type
Unleaded 95 Octane or higher
Fuel Consumption
0.56 LBS / Per HP / Per Hour
Cooling
Liquid Cooling
Starting Device
Electric Onboard
Ignition System
Programmable fuel injection with CAN bus
Generator
300W 12V+ Options 2 or 3 KW at 28V
No items found.
DATA

Performance Data

Max Peak Power
100HP
@ 7500 RPM
Max Continuous Power
70HP
(continuous rating)
Fuel Consumption
0.56 LBS
/ Per HP / Per Hour
Performance Data
Rotron RT600-XE Engine Performance Data
FAQ

Frequently
Asked Questions

What is the displacement and configuration of the RT600-XE?

The Rotron RT600-XE is a twin-rotor rotary engine with a combined displacement of 600 cc.

What are the rated power outputs and weight?

The RT600-XE engine delivers up to 100 hp peak and 70 hp continuous output.

What drive options are available?

The RT600-XE supports flange, direct and reduction (2.5:1 or 2.2:1) drive configurations.

What fuel system does the RT600-XE engine use?

The RT600-XE utilises electronic fuel injection for precise mixture control and improved efficiency.

What fuel types are compatible with the RT600-XE?

The RT600-XE operates on unleaded petrol of 95 octane or higher.

How is the RT600-XE rotary engine cooled?

A liquid-cooling system maintains controlled operating temperatures across varied mission profiles.

What is the quoted Time Between Overhaul (TBO)?

The engine is rated for a time-between-overhaul of up to 1000 hours, depending on duty cycle.
