TALON DT-300

The Talon DT-300 is a fully electric, multi-role VTOL UAV system that can be reloaded and used time and time again. It’s industry leading performance in multiple key areas, including payload, range, cost, deployability combined with the lowest operational radar and acoustic signature place it far ahead of the competition, delivering a game changing capability across multiple user groups and applications.

FEATURES

Explore the interactive hotspots below to learn more about the DT-300.

The Talon DT-300 is purpose designed to deliver outstanding payload ‘v’ range performance, outperforming conventional multi-rotors (quadcopters, coax quadrotors etc) by a factor of up to four times. This industry leading efficiency is driven by its highly optimised dual rotor aerodynamics, utilising active blade pitch control (cyclic and collective) to harness translation lift during forward flight. It’s ultra-high aspect ratio, 3.5m (11.5ft) rotors maximise lift and minimise drag, setting it apart from conventional designs and other industry competitors.  Due to its extremely low disc loading (4.6kg/m2 which is 4 – 5 times lower than that of a typical cargo helicopter) the Talon achieves unprecedented efficiency in both hover and forward flight. This results in unparallelled range performance and extremely quiet operation; the Talon has the lowest acoustic signature of any VTOL system in its payload class.

Dt-300 Features

Rotor Head

Raptor Camera

Flight Control

Carbon Fibre Body

Rotor Blade

Locking Hinge

Propulsion

Tandem Rotor

The Talon DT-300 adopts a dual-rotor configuration, a deliberate departure from traditional single-rotor helicopters with tail rotors or conventional multi-rotors with 4 to 8 blades. Importantly, this design choice mirrors the proven success of the Boeing CH-47 Chinook cargo helicopter – the longest-serving helicopter in history, with 63 years of operational excellence and ongoing production. The dual-rotor format offers unparalleled efficiency, proven performance, and reliability.

As the “mini-Chinook” of the VTOL UAV industry, the Talon DT-300 builds on this legacy with modern advancements. Its ultra-lightweight, low-drag, folding carbon composite fuselage ensures maximum portability and performance, while its clean, quiet, and efficient electric propulsion system sets a new standard for simplicity and sustainability. The Talon DT-300 represents a leap forward in UAV design, combining the best of aerospace engineering with cutting-edge innovation.

Longest range electric VTOL payload system in its class

ROTOR SIZE:

2 x 3.5M (11.5FT)

ENDURANCE:

2HRS (10KG PAYLOAD)

MTOW:

90KG (WITH 45KG PAYLOAD)

CRUISE SPEED:

80 KM/H (50 MPH)

BOXED DIMENSIONS

L:155cm W:73cm H:54CM

MAX DROP RADIUS:

45KM (WITH 30KG PAYLOAD)

MAX ALTITUDE:

6000M (20,000FT)

MAX RANGE: 140KM

30KG PAYLOAD: 70KM

PERFORMANCE DATA

Payload 'v' Range Metrics

PAYLOADMAX RANGE
(one way)		*DROP RADIUS
(out & return)
0 KG140 KM70 KM
5 KG115 KM58 KM
10KG105 KM55 KM
20 KG90 KM50 KM
30 KG70 KM45 KM
45 KG25 KM15 KM
  • *Drop Radius = Fly out with Payload – Drop Payload – Return with zero Payload
  • Zero payload includes Raptor EO/IR camera and DTC long-range digital data link (up to 60km LOS)

DT-300 Mothership

The DT-300’s impressive capability to carry up to 45kg payload is further enhanced by its modular carrier rack, designed specifically to accommodate aerial launch drones. This innovative feature allows operators to deploy drones directly from the DT-300, extending its operational range and versatility. By integrating aerial launch drones, the DT-300 becomes an invaluable tool for missions such as surveillance, enabling it to cover expansive areas with precision and efficiency. This modular approach not only maximizes the DT-300’s payload utility but also offers unparalleled flexibility for diverse mission profiles.

Talon DT-300 Mothership

DT-300 Multi-Use Payload Rig

The Multi-Role Payload Mount and Drop Rig System (16-servo) is a highly versatile payload deployment platform designed specifically for integration with the DT-300 fuselage. Equipped with 16 independent, remotely-controlled servo connection points, the system offers exceptional flexibility in mission configuration and payload type.

Fuselage Integration:

Fuselage connection

Rigidly fastened to the DT-300 fuselage hinge points, the mount maintains stability during flight while minimizing structural stress during payload release.

Precision
Control:

Servo

Each of the 16 connection points is servo-actuated and remotely managed, enabling precise, selective payload release and dynamic mission adaptability.

Modular Configuration:

Modular

The system supports a wide range of deployment options, including:

  • 16 x Wren-5 drones
    (0.8kg payload each)
  • 8 x Swift-7 drones
    (1.5kg payload each)
  • 4 x Falcon-10 drones
    (3kg payload each)

Logistics & Resupply:

Bags

In addition to drone deployment, the system can carry 2 large supply bags (15kg each), supporting total payloads up to 30kg for tactical resupply or humanitarian drops.

Aerial launch DRONES

Rotron’s range of high-performance aerial launch drones are designed to integrate with the Talon DT-300 Mothership, enabling extended range operations, distributed surveillance, and precision delivery of payloads ranging from 0.8 kg to 2.5 kg. Each FPV drone boasts a range of up to 25 km from the mothership and operates at speeds of up to 120 km/h.

The Talon DT-300 system features a digital radio rebroadcasting system which creates a robust data-link mesh network, ensuring reliable, extended communication with all FPV drones. The payload drop-rig is capable of carrying up to 16 FPV drones (Wren-5), each equipped with a dual-redundant release mechanism controlled by the mothership’s autopilot. All Rotron FPV drones are manufactured in-house at Rotron’s UK facility using only NDAA-compliant components.

The combination of the Talon DT300 Mothership and Rotron’s FPV drones delivers a formidable capability upgrade, significantly enhancing both the range and reliability of the data-link while serving as a highly effective force multiplier.

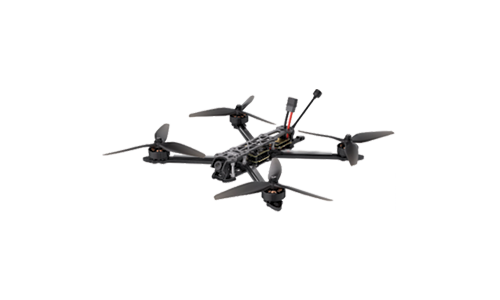

Wren-5 drone

Wren-5

The WREN-5 is a compact, high-agility FPV drone built for rapid, precise missions. Featuring four 5-inch propellers, it thrives in tight or dynamic environments—ideal for scouting, surveillance, or light payload delivery.

Designed to complement larger systems like the SWIFT-7, the WREN-5 brings speed and flexibility to multi-drone operations. The DT-300 Mothership can deploy up to sixteen WREN-5 drones, each carrying a 0.8 kg payload, enabling adaptable, high-efficiency deployments across a range of tactical or support scenarios.

Swift-7

SWIFT-7

The SWIFT-7 is a high-performance FPV drone built for precision and adaptability. Equipped with four 7-inch diameter propellers, it is engineered to integrate seamlessly with a variety of payloads, ensuring accurate and reliable deliveries.

Whether tasked with surveillance or transporting lifesaving supplies, the SWIFT-7 offers a perfect balance of agility and stability in flight. The DT-300 Mothership can deploy up to eight SWIFT-7 drones, each carrying a 1.5 kg payload, for a combined total payload capacity (including drones) of 30 kg.

Falcon-10

FALCON-10

The FALCON-10 is a cutting-edge FPV drone designed for precision and versatility. Featuring four 10-inch diameter propellers, it seamlessly integrates with various payloads to deliver exceptional accuracy in every mission.

The FALCON-10 combines agility with stable flight performance. Up to four FALCON-10 drones can be deployed from the DT-300 Mothership, each carrying a 2.5 kg payload, enabling a total operational payload capacity (including drones) of 30 kg.

portability

The Talon DT-300 features an innovative, tool free, folding design, meticulously engineered to reduce weight and complexity while maximizing aerodynamic efficiency. Its rapid pack-down capability creates a compact form factor, enabling easy transport without the need for special vehicles. The lightweight flight case (54 KG) can easily be carried and loaded by just two people into an ordinary estate car, making deployment fast and practical. Whether launching from urban environments, challenging terrains, or even at sea, the DT-300’s versatility ensures reliable operation in virtually any setting.

Talon DT-300 Flight Case

EASILY STORED & TRANSPORTED

Talon DT-300 folded

DT-300 REMOVED FROM BOX

Talon DT-300 unfolded

central section UNFOLDED

Talon DT-300 with blades

ASSEMBLED WITH ROTOR BLADES

Talon DT-300 with payload

PAYLOAD ADDED & READY TO BE DEPLOYED

DT-300 Technical drawing

Click image to download

technical specifications

AIRCRAFT DIMENSIONS:3.9m long x 1.2m wide (12.7ft x 3.9ft) (inc. deployed landing gear)
ROTOR DIAMETER:3.5m (11ft) x 2 rotors
AIRCRAFT MASS: 31kg (68bs) (inc. Raptor EO/IR camera and DTC digital radio data link)
MAX PAYLOAD:45kg (100lbs)
MAXIMUM TAKE-OFF MASS:90KG (198lbs)
MAXIMUM SPEED:120km/h (75mph)
MAXIMUM RANGE:120km (inc. Raptor EO/IR camera and DTC digital radio data link)
OPTIMAL CRUISE SPEED:80km/h (50mph)
MAXIMUM ALTITUDE:6000m (20,000ft)
TOTAL LENGTH: (inc rotors)7.0m x 3.5m (22.9ft x 11.5ft)
PROPULSION SYSTEM:2 x Rotron 10kw Brushless Motor
BATTERY SYSTEM:2 x 64Ah (48v) Lithium Ion

flight case SPECIFICATIONS

CASE LENGTH:155CM
CASE WIDTH:73CM
CASE HEIGHT:54CM
CASE WEIGHT16KG
Flight Case

Click image to download

GALLERY

Video Access

Access to Rotron Aerospace Goverment application video is restricted by a password. To obtain the password, please send a request via email to info@rotron.co.uk.

GET IN TOUCH

feature-rotor-head2

DT-300

UNIQUE ROTOR HEAD

Rotron’s proprietary three-bladed rotor head system enables cyclic and collective pitch control, providing electro-mechanical stabilization and efficient lift. With ~30% fewer moving parts than conventional rotorheads and a driverless swashplate, it offers simplicity, energy efficiency, and reduced costs. Designed and tested in-house, it showcases Rotron’s expertise in metallurgy and aerodynamics.

In contrast, multi-rotors rely on rigid rotors and variable speeds, leading to higher energy use and limiting blade size due to inertia.

DT-300

CAMERA

The TALON DT-300 comes equipped with the Next Vision Raptor camera, a lightweight, long-range, dual EO-IR stabilized turret. Featuring an extended IR range and an X80 EO zoom, the Raptor delivers exceptional imaging performance, ensuring superior target detection, identification, and tracking.

This integration enhances the DT-300’s capabilities for ISTAR missions, reconnaissance, and surveillance, making it an unmatched asset in demanding operational environments.

DT-300

FLIGHT CONTROL
& NAVIGATION

Operates autonomously with adapted flight control systems. Multiple navigation systems (GPS, inertial and optical) enable Talon to operate in contested environments. Electronic stabilization manages roll, pitch and yaw control in turbulent and tough weather conditions.

Carbon Fibre Body

DT-300

CARBON FIBRE BODY

An automatically rolled, cylindrical carbon composite fuselage results in a strong, light weight design. This simple design simplifies manufacture (inline process) without the need for hand ”lay up” and autoclaves.

As a result, the traditional limitations of carbon fibre manufacture of variability and slow scale up are overcome. The tubular composite fuselage can accommodate a Rotron aero-engine as part of a series hybrid battery charging generator for longer range variants.

Talon DT-300 rotor blades

DT-300

LARGE ROTOR BLADE

Large, 3.5m rotor diameter, with ultra-high aspect ratio and low disk-loading. A highly stable design, capable of heavy lift. Blades are of Rotron Aerospace design, manufactured by a 3rd party utilising tooling designed and owned by Rotron Aerospace.

DT-300

LOCKING HINGE

The DT-300 folding hinge is an engineered mechanism designed to enhance the portability and storage of the DT-300. It allows the device to fold into three sections, significantly reducing its length, making it easier to pack into a single, transportable box.

The hinge features a locking mechanism that securely fastens the sections when unfolded, ensuring stability and preventing unwanted movement during use.

DT-300

EFFICIENT PROPULSION SYSTEM

A proprietary, liquid cooled electric propulsion system with outstanding SWAP-C metrics for each rotor (removes the need for complex transmission systems).

Batteries (lithium-ion), battery management system and motors are to Rotron specification, integrated by Rotron utilising a trusted, UK-based supply chain. Outstanding thermal management ensures operational efficiency. Batteries may be switched out or recharged.

DT-300 Rotor Head

DT-300

TANDEM MOTOR

Tandem, counter-rotating rotors, remove the need for a tail rotor – all power is used for generating lift which also significantly reduces noise. Foldable body and blades overcome traditional limitations of tandem rotor designs having a large footprint.

DT-150

CAMERA

The TALON DT-150 features the NextVision Raptor – a lightweight, long-range dual EO-IR stabilized turret. With extended IR range and X80 EO zoom, it delivers outstanding imaging for target detection, identification, and tracking.

This integration enhances the DT-150’s performance in ISTAR, reconnaissance, and surveillance missions, making it a highly capable asset in demanding environments.
